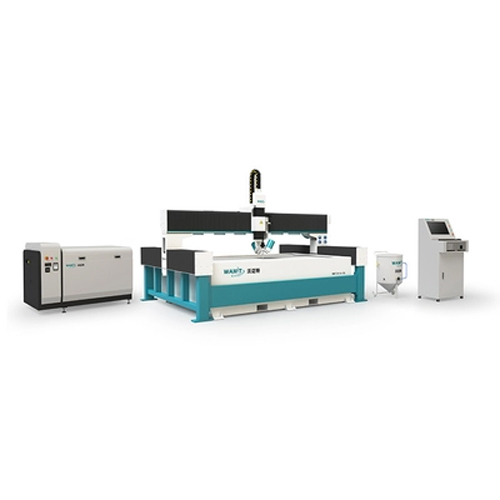

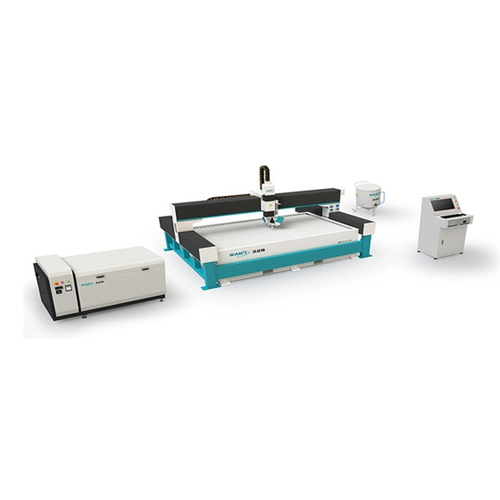

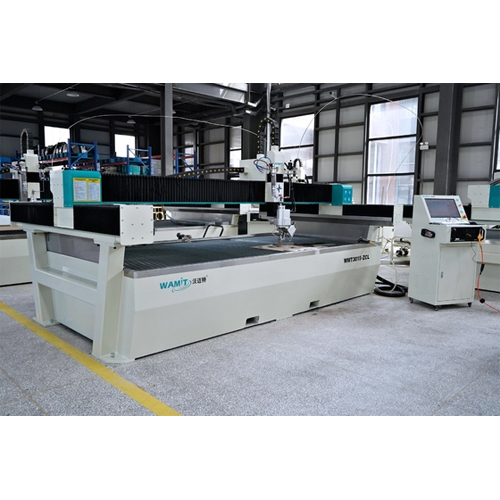

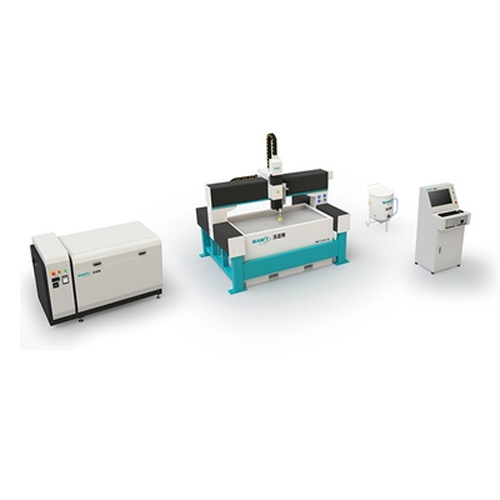

1500 x 1500mm Granite Water Jet Cutting Machine

Get a Price/Quote

MOQ : 1 Unit

1500 x 1500mm Granite Water Jet Cutting Machine Specification

Material
Stainless Steel

Hardness
Rigid

Machine Type
CNC

Usage
Industrial

Cutting Force
Adjustable

Operate Method
Semi Automatic

Features
High Quality

Coating Type
Polished

1500 x 1500mm Granite Water Jet Cutting Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
50 Units Per Month

Delivery Time
7 - 10 Days

Main Domestic Market
All India

About 1500 x 1500mm Granite Water Jet Cutting Machine

The 1500 x 1500mm Granite Water Jet Cutting Machine delivers precision cutting with adjustable cutting force to suit various industrial applications. Engineered using polished stainless steel, this CNC machine offers exceptional durability and rigidity, ensuring reliable performance even in demanding environments. Its semi-automatic operation method combines efficiency with ease of use, allowing operators to manage cutting tasks effectively. Designed for handling granite and similar hard materials, the machine delivers high-quality results with its robust construction and advanced technology. This water jet cutter is ideal for businesses seeking to enhance productivity in precision-cutting tasks while ensuring top-notch accuracy and versatility.

Name	Item	Parameter
Direct drive Pump	Model	WMT SDD 20
	motor	SIEMENS
	Method of Direction Regulation	Electronic direction regulation
	Pressure Range	50-420MPA, continuous pressure is 330-380Mpa
	Maximum Flow of Hydraulic Pump	90 L/min
	Maximum Discharge Capacity	3.5 L/min
	Maximum Diameter of Gem Nozzle	0.33 mm
	Power of Master Motor	15 KW
	Power Source	380V/50HZ, also work at 220V/60HZ, 415V
Cutting Table	X axis Characteristic	use strong 10MM steel, 2500MM cutting range. The cutting table width is 2700mm
	Y axis Characteristic	Cast iron is used as the foundation base , 1500MM cutting range . The cutting table length is 1700mm.
	Z axis Characteristic	Z axis double linear guide and four sliding block , 180MM, CAN DO 200MM
	Control Accuracy	0.01mm, cutting accuracy is 0.1mm, reposition accuracy: 0.02mm, max travelling speed:6000mm/min, we have new technology that can make the travelling speed 20-30m/min.
	linear guider	TAIWAN HIWIN BRAND
	Table Ctructure	Separated body, can be delivered by one 20'FCL container
	Driving Way	Servo drive system
	CNC system	Ncstudio ,Fagor
	Servo Motor	SIEMENS motor
	Cutting Head	Casting structure and Concrete structure
	Sealing Way	soft dustproof cloth on X,Y,Z axis,the sealing result will be better,and there is a oil tank under the cutting table,the linear guider no need maintainence.
	Loading Weight Water Tank	Wall thickness is 6mm,using fluorocarbon coating, Can antirust at least 5 years.
CNC Controller	Control Method	CNC
	Display Size	21inch LCD
	Model of Cutting Text	DXF
	Model of Computer	Industrial Control Computer
	Operating System	Windows 7
	PLC	SIEMENS
	Cutting Software Advantage	Auto save and transfer common parameter
	Controller Displace	Can be fit to suitable place at own will
Automitic Abrasive Feeder	Founction	Sand storage and sand delivery
	Operating	No need electrocnic control,sample operation
	Capacity	200 kg for 8 -10hours
	Pressure	0.3-0.6Mpa compresses gas pressure
	Color	White
Deionization System	Water pressure	0.15Mpa~0.6Mpa
	Water temperature	5C~50C
	Environment temperature	5C~50C
	Relative humidity	95%(25C)
	Water turbidity	<20FTU
Wireless Handle	Founction	Wireless controlling waterjet
	Display	Real- time display condition of X,Y,Z axis
	Settings	Zero point, on/off valve set, X,Y,Z axis moving
	Technology	Advanced technology
